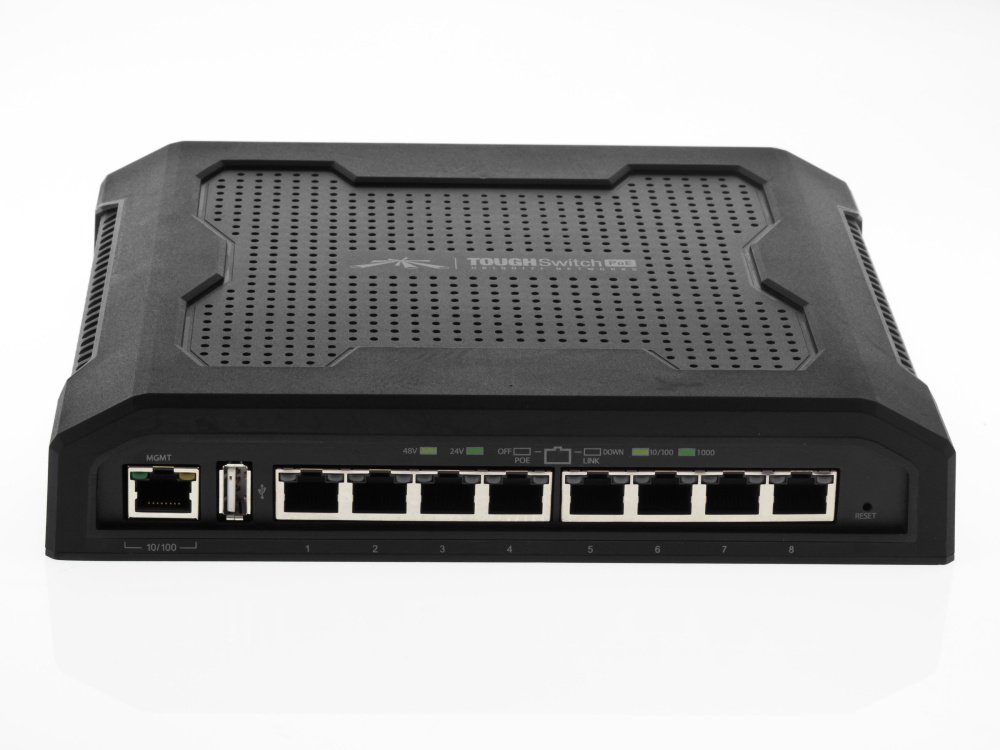

Ubiquiti TS-8-PRO 8 Port ToughSwitch POE Ethernet switch Mall

Ubiquiti 8 Port TS-8-PRO POE Ethernet ToughSwitch is designed to simplify deployment, consolidating the delivery of data and passive Poe, it supports 24V and 48 V to power multiple devices at the same time.

Ubiquiti TOUGHSwitch 8-Port PoE PRO offers Gigabit Ethernet performance and industrial-strength construction. It is capable of powering up to eight 24V or 48V devices with software selectable output voltage control, making it the ideal PoE solution for use with Ubiquiti airMAX base station deployments.

TOUGHSwitch PoE delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.

8 Port TS-8-PRO POE to connect your PoE devices, simply enable PoE in the easy-to-use TOUGHSwitch Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non -PoE devices can be connected.

Ubiquiti TOUGHSwitch 8-Port PoE PRO – Technical Specifications

General

• Dimensions 210 x 185 x 41 mm
• Weight 1.24 kg
• Power Input 110-120VAC / 210-230VAC
• Max. Power Consumption 150 W
• PoE Out Voltage Range 45-48VDC / 22-24VDC
• Max. PoE Wattage Per Gigabit Port 18W
• ESD Rating 24 kV Air / 24 kV Contact
• PoE Method Passive
• Button Reset
• USB Port 2.0 Type A (Reserved for Future Use)
• Processor MIPS24K 400 MHz
• System Memory 64 MB
• Code Storage 8 MB
• Certifications CE, FCC, IC
• Operating Temperature -25 to 55°C (-13 to 131° F)
• Operating Humidity 90% Non-Condensing

PoE Configurable Per Port

• Management N/A
• Ports 1-8 Off/24V/48V

LEDs Per Port

• Management Link/Activity
• Ports 1-8 PoE, Speed/Link/Activity

Networking Interfaces

• Management Port (1) 10/100 Ethernet Port
• Ports 1-8 (8) 10/100/1000 Ethernet Ports
