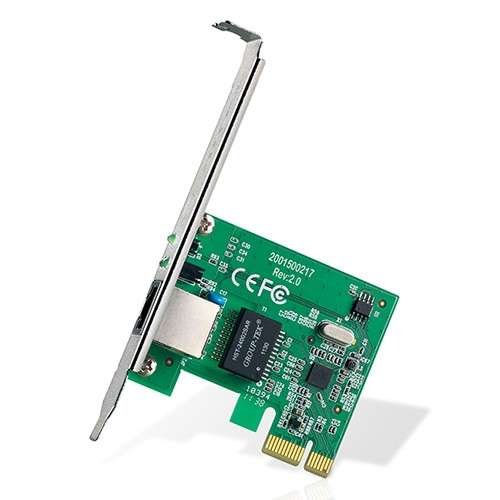

TP-Link TG-3468 Gigabit PCI Express Network Adapter Mall+254
TP-Link TG-3468 Gigabit PCI Express Network Adapter is an IEEE 802.3/802.3u/802.3ab compliant network card used to provide a stable network connection. You can take advantage of auto-negotiation and Auto MDI/MDIX standards ensuring you get the highest quality data connection. With Wake-on-LAN support you can wake up your computer with a network message allowing you to place your computer into sleep mode when not in use. This plug and play network card comes equipped with LED status indicators allowing you to see the status of your network connection.
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.0a |
| Networking | |
|---|---|
| Ports | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, CSMA/CD |
| Status Indicators | Port duplex mode, link/activity |
| Features | Flow control, auto-negotiation, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 1000Base-T – RJ-45 |
| Compatible Slots | 1 x PCI Express x1 |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC |
| Software / System Requirements | |
|---|---|
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – parts and labor – 2 years |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% |
