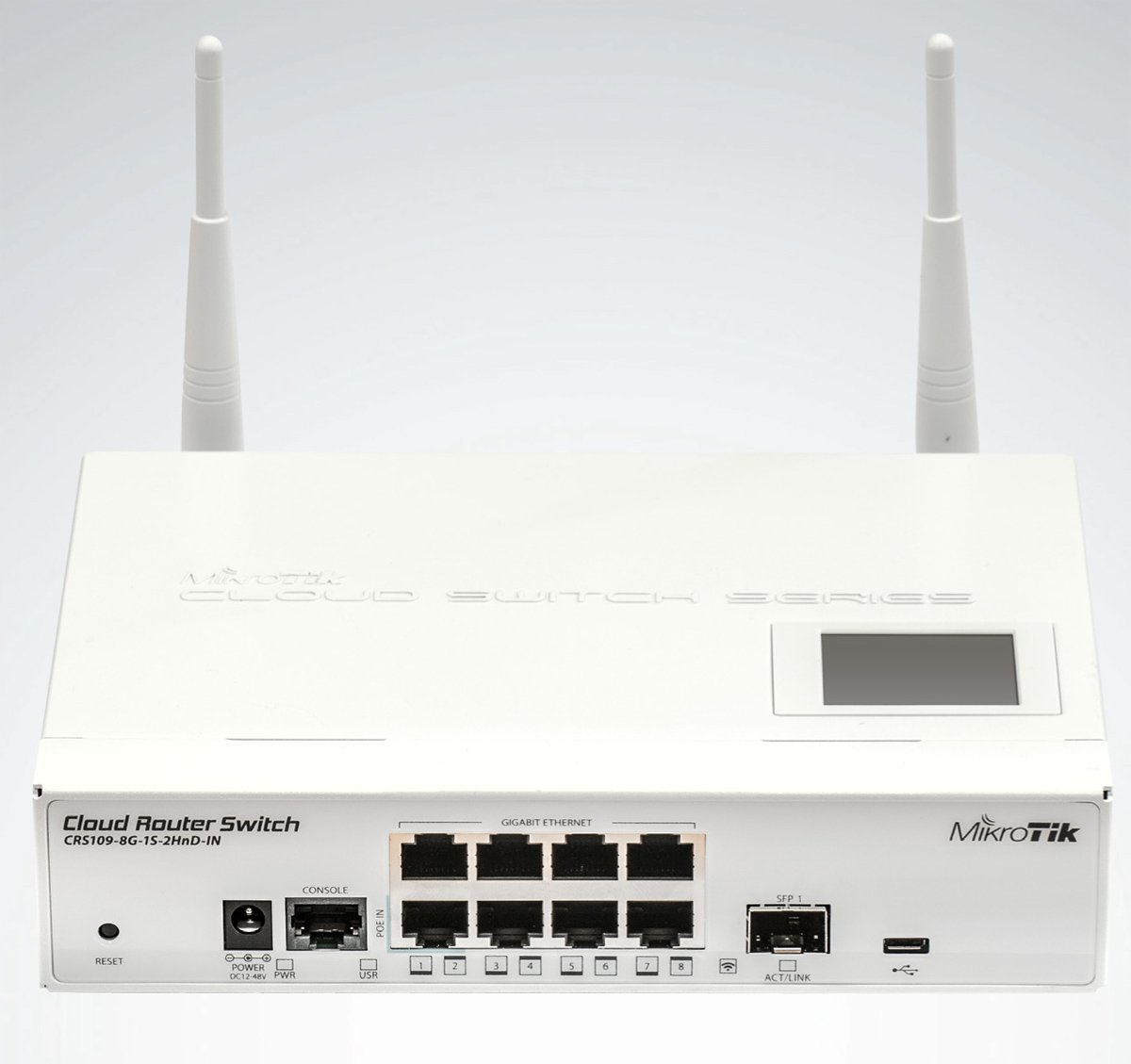

Mikrotik CRS109-8G-1S-2HnD-IN Gigabit Smart Switch Mall+254
Mikrotik CRS109-8G-1S-2HnD-IN Gigabit Smart Switch from the leading Mikrotik switch authorized dealer in Nairobi, buy online CRS109-8G-1S-2HnD-IN Gigabit Smart Switch and have it delivered.
Mikrotik Cloud Router Switch 109-8G-1S-2HnD-IN is new “small size low cost” member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Mikrotik CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS.
CRS109-8G-1S-2HnD-IN Gigabit Smart the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
CRS109-8G-1S-2HnD-IN Gigabit Smart specifications
| Details |
| Product code |
CRS109-8G-1S-2HnD-IN |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
200 x 142 x 44 mm |
| License level |
5 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 65°C |
| Suggested price |
$149.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| 802.3af support |
yes |
| PoE in input Voltage |
10-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-57 V |
| Max power consumption |
13 W |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
4 |
| Wireless 2.4 GHz chip model |
AR9344 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
8 |
Fiber
| Details |
| SFP DDMI |
yes |
| SFP ports |
1 |
Peripherals
| Details |
| Serial port |
RJ45 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
microUSB type AB |
| Max USB current (A) |
1.5 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, EAC, ROHS |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
29 |
-97 |
| 11MBit/s |
28 |
-90 |
| 6MBit/s |
30 |
-96 |
| 54MBit/s |
25 |
-76 |
| MCS0 |
30 |
-96 |
| MCS7 |
23 |
-73 |
Reviews
There are no reviews yet.
