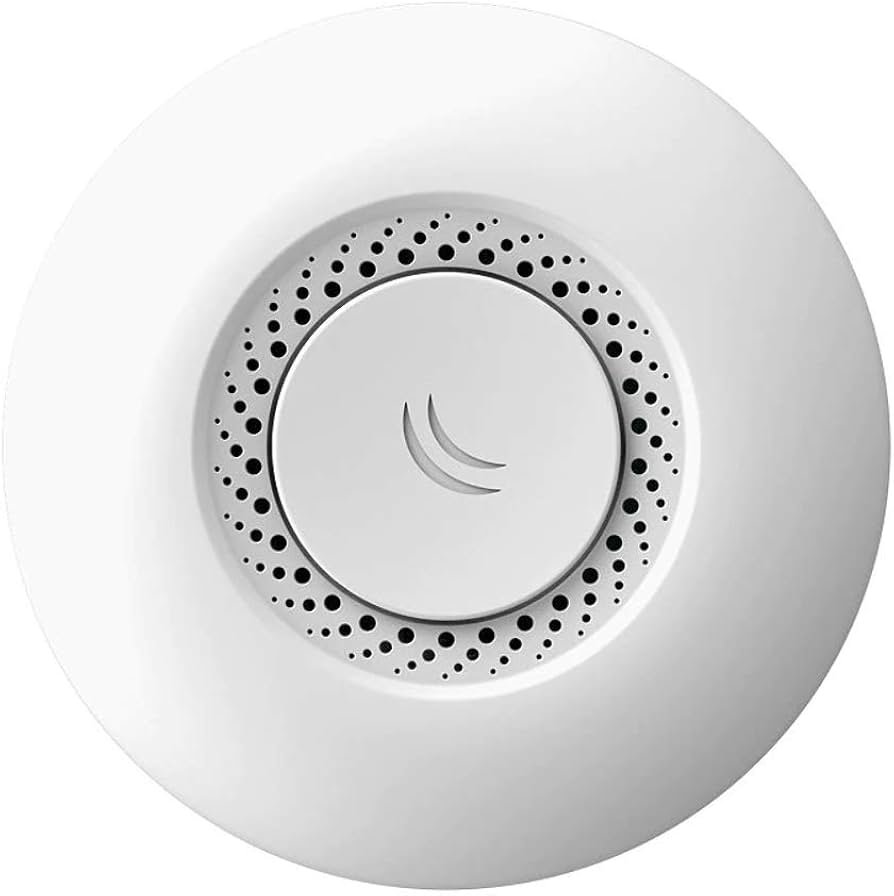

MikroTik CAP Lite – RBcAPL-2nD Access point Mtech Network
MikroTik CAP Lite – RBcAPL-2nD Access point from the leading Mikrotik Access point authorized dealer, buy MikroTik CAP Lite – RBcAPL-2nD Access point online and have it delivered to your door step.
MikroTik CAP Lite – RBcAPL-2nD Access point is PoE powered, it is a small size stand alone access point that can be used in hospital, malls and airport. It’s a perfect companion for the MikroTik CAPsMAN that allow you to control all you AP devices from a central point.
Mikrotik cAP lite supports 802.11b/g/m and can be powered by Power over Ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Mikrotik cAP lite access point can also be used as a stand alone access point with the full potential of RouterOS.
MikroTik CAP Lite – RBcAPL-2nD Access point Specifications
Details |
Product code |
RBcAPL-2nD |
Architecture |
MIPSBE |
CPU |
QCA9533 |
CPU core count |
1 |
CPU nominal frequency |
650 MHz |
Dimensions |
Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
64 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C to 70°C |
Suggested price |
$29.00 |
Powering
Details |
MicroUSB input Voltage |
5-5 V |
PoE in |
802.3af/at |
PoE in input Voltage |
10-60 V |
Number of DC inputs |
2 (PoE-IN, MicroUSB) |
Max power consumption |
4 W |
Wireless
Details |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
1.5 |
Wireless 2.4 GHz chip model |
QCA9533 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
Details |
10/100 Ethernet ports |
1 |
Peripherals
Details |
Number of USB ports |
1 |
USB slot type |
microUSB type AB |
Max USB current (A) |
1 |
Certification & Approvals
Details |
Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
22 |
-96 |
11MBit/s |
22 |
-89 |
6MBit/s |
20 |
-93 |
54MBit/s |
18 |
-74 |
MCS0 |
20 |
-93 |
MCS7 |
16 |
-71 |
