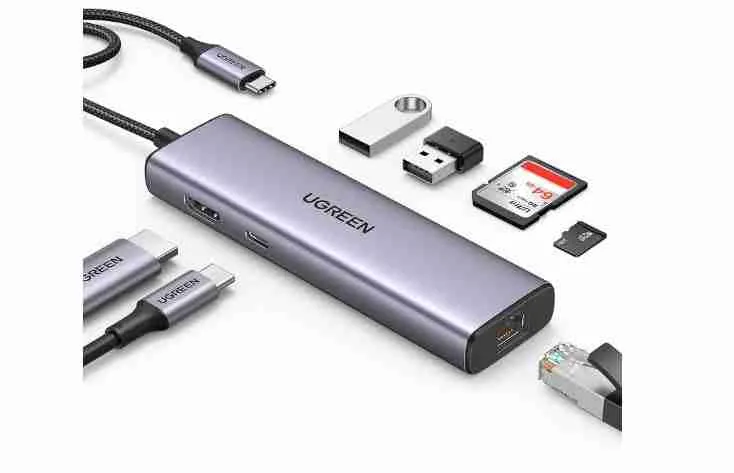

UGREEN CM512 7-in-1 Multifunction Adapter

Comprehensive Connectivity Solution

The UGREEN CM512 transforms a single USB-C port into seven distinct connection options. This versatile adapter efficiently addresses the limited port availability on modern laptops and tablets. As a result, users can simultaneously connect multiple peripherals and accessories through one compact device.

Advanced Port Configuration

The UGREEN CM512 (UG-90568) features an impressive array of connectivity options:

• Dual USB 3.0 ports supporting 5Gbps data transfer speeds
• 4K HDMI output for crystal-clear external displays
• Gigabit Ethernet RJ45 port for stable wired networking
• SD and TF card reader slots for convenient media access
• USB-C Power Delivery (PD) pass-through charging

Moreover, the CM512 adapter supports concurrent use of all ports, enabling users to transfer data, charge devices, and display content simultaneously.

Superior Display Performance

The HDMI port on the UGREEN CM512 delivers exceptional visual capabilities:

• 4K (3840×2160) resolution at 30Hz refresh rate
• 1080p resolution at 60Hz refresh rate
• HDCP compatibility for protected content
• Mirror and extend display modes

Additionally, the adapter automatically detects optimal resolution settings based on the connected display, thereby eliminating complex configuration procedures.

Network Stability Enhancement

With its integrated RJ45 port, the CM512 provides:

• Gigabit Ethernet speeds (10/100/1000Mbps)
• Auto-negotiation for optimal connection rates
• Full-duplex data transmission
• Wake-on-LAN support for remote computer activation

Consequently, users experience significantly more reliable internet connectivity compared to wireless alternatives, particularly in crowded network environments.

Durable Construction & Design

The UGREEN CM512 features thoughtful engineering details:

• Aluminum alloy housing for enhanced heat dissipation
• Braided cable with reinforced stress points
• Compact dimensions: 110mm × 55mm × 15mm
• Lightweight at approximately 70g
• Integrated 15cm cable for flexible positioning

Furthermore, the adapter incorporates EMI shielding to minimize electromagnetic interference and maximize signal integrity.

Perfect For

The UGREEN CM512 Multifunction Adapter is particularly suitable for:

• Business professionals requiring presentation capabilities
  • 4K HDMI output enables high-quality conference room presentations
  • Gigabit Ethernet ensures reliable access to cloud resources even in areas with poor Wi-Fi
• Content creators working with multiple media types
  • Dual SD/TF card slots support simultaneous access to different memory cards
  • 5Gbps USB 3.0 ports facilitate rapid transfer of large media files
• Remote workers with limited workspace
  • Single-cable solution reduces desk clutter
  • PD pass-through charging eliminates the need for a separate power adapter
• Students needing flexibility between library, classroom, and dorm
  • 70g weight adds minimal burden to backpacks
  • Multiple ports accommodate varying campus technology infrastructure

Technical Specifications

USB Specifications

• USB-C Input: 1× (male connector)
• USB 3.0 Ports: 2× Type-A (female connectors)
• USB Data Transfer Rate: 5Gbps
• USB Power Output: 5V/0.9A (each port)

Video Specifications

• HDMI Version: 1.4
• Maximum Resolution: 4K (3840×2160) @ 30Hz
• Alternative Resolution: 1080p @ 60Hz
• Color Depth: 8-bit
• HDCP Support: Yes

Network Specifications

• Ethernet Standard: IEEE 802.3/802.3u/802.3ab
• Speed Support: 10/100/1000Mbps
• Interface: RJ45 (female)
• Auto-negotiation: Yes
• Full/Half Duplex: Yes

Card Reader Specifications

• Supported Formats: SD, SDHC, SDXC, Micro SD, Micro SDHC, Micro SDXC
• Card Data Transfer Rate: Up to 104MB/s
• Simultaneous Operation: Yes

Power Delivery Specifications

• USB-C PD Port: 1× (female)
• Power Pass-through: Up to 100W
• Charging Protocol: USB PD 3.0
• Fast Charging Support: Yes

Physical Properties

• Material: Aluminum alloy + ABS plastic
• Cable Length: 15cm
• Dimensions: 110mm × 55mm × 15mm
• Weight: Approximately 70g
• Model Number: CM512
• Product Code: UG-90568

Compatibility

• Operating Systems: Windows 7/8/10/11, macOS 10.10+, Chrome OS, iPadOS
• Required Port: USB Type-C with Alt Mode support
• Host Device Examples: MacBook Pro/Air, Dell XPS, Surface Pro, iPad Pro, Samsung Galaxy tablets

Package Contents

• 1× UGREEN CM512 7-in-1 Multifunction Adapter (UG-90568)
• 1× User Manual
