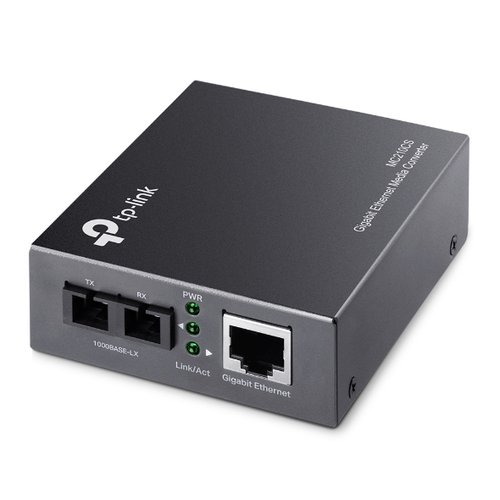

TP-Link MC210CS Gigabit Single-Mode Media Converter Mall+254
TP-Link MC210CS Gigabit Single-Mode Media Converter is designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector.
TP-Link MC210CS Gigabit Single-Mode Media Converter supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).
Specifications
| General | |
|---|---|
| Device Type | Fiber media converter |
| Form Factor | External |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-FX, 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 9.3 miles |
| Status Indicators | Power, receive, link/activity |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x Ethernet 1000Base-T – RJ-45 female ¦ 1 x Ethernet 1000Base-FX – SC single-mode female x 2 |
| Power | |
|---|---|
| Power Device | External power adapter |
| Dimensions & Weight | |
|---|---|
| Width | 3.7 in |
| Depth | 2.9 in |
| Height | 1.1 in |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% |
| Compatibility Information | |
|---|---|
| Designed For | P/N: TL-MC1400 |
