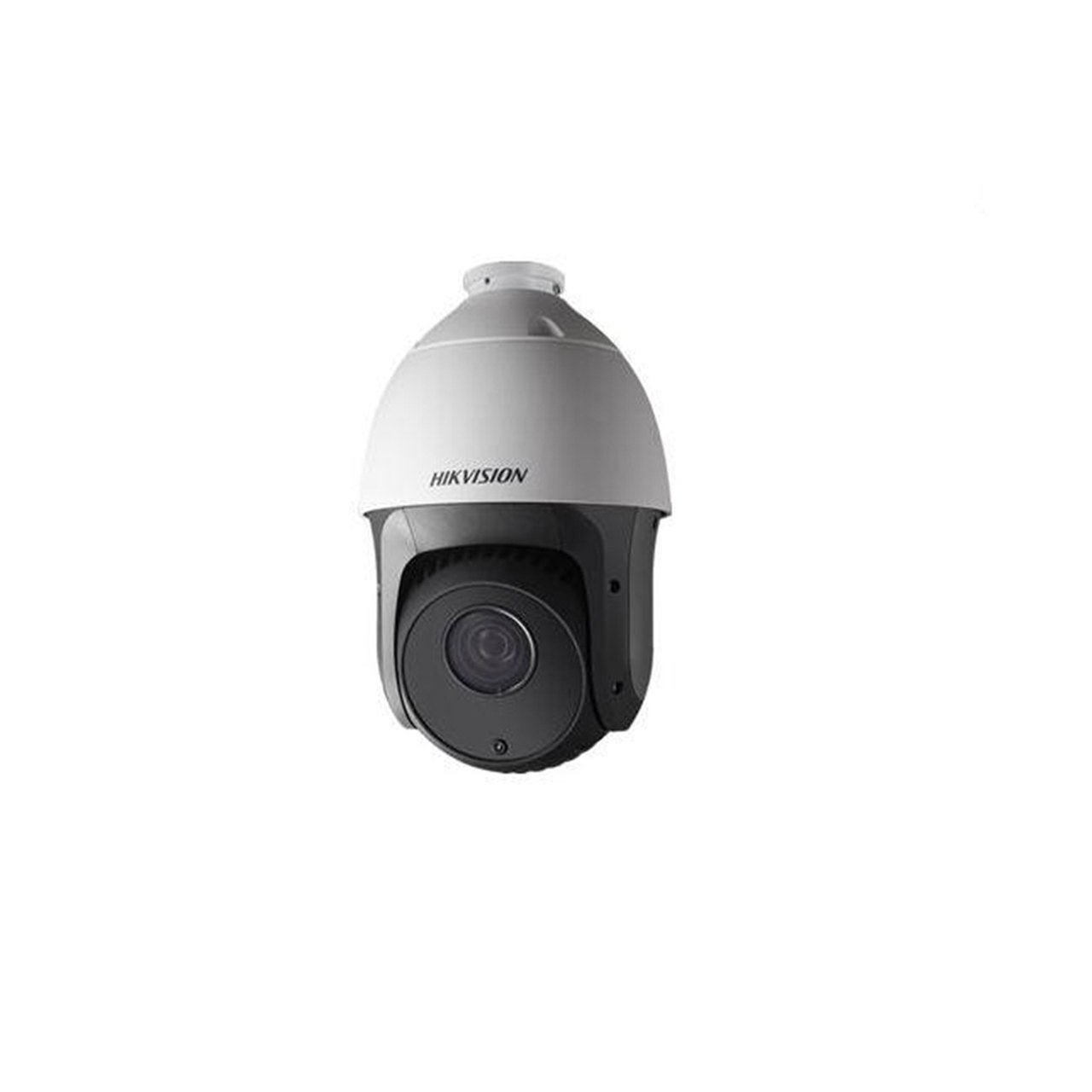

Hikvision DS-2AE5225TI-A 2 MP IR Turbo 5-Inch Speed Dome

+ VAT

19 People watching this product now!

Hikvision DS-2AE5225TI-A 2 MP IR Turbo 5-Inch Speed Dome Mall+254

CAMERA
Image Sensor:		1/2.8″ Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR
White Balance:		Auto / Manual / ATW / Indoor / Outdoor
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
WDR:		≥ 120 dB
Anti-shake:		On / Off
Shutter Time:		PAL: 1-1/10,000s NTSC: 1-1/10,000s
Day& Night:		ICR
Digital Zoom:		16x
Privacy Mask:		8 programmable privacy masks
Auto Focus:		Auto / Semi-automatic / Manual

LENS
Focal Length:		4.8 mm to 120 mm, 25× Optical
Zoom Speed:		Approx. 3.6 s (optical, wide to tele)
Field of View:		Horizontal field of view: 57.6° to 2.5° (wide to tele) Vertical field of view: 34.4° to 1.4° (wide to tele) Diagonal field of view: 64.5° to 2.9° (wide to tele)
Minimum Working Distance:		10 mm to 1500 mm (wide to tele)
Aperture Range:		F 1.6 to F 3.5

PAN & TILT
Pan Range:		360°endless
Pan Speed:		Pan manual speed: 0.1° to 120°/s Pan preset speed: 120°/s
Tilt Range:		-15°-90° (Auto Flip )
Tilt Speed:		Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		256
Patrol:		10 patrols, up to 32 presets per patrol
Pattern:		5 patterns, with the total recording time no less than 10 minutes
Power-off Memory:		Support
Park Action:		Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Position Display:		ON/OFF

INFRARED
IR Distance:		150m

ALARM
Alarm Input:		2
Alarm Output:		1

INPUT & OUTPUT
Video Output:		Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
UTC function:		UTC protocol (or HIKVISION-C protocol in previous DVR)

GENERAL
RS-485 Protocols:		HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language:		English
Power Supply:		24V AC
Power Consumption:		Max. 30 W (IR:10 W)
Working Temperature/Humidity:		-30 °C-65°C(-22°F-149°F) 90% or less
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:		Ø 208 mm × 305 mm (Ø 8.19″ ×12.01″)
Weight (approx.):		3.3 kg (7.28 lb.)
