HikVision 4 port DS-3E0105P-E/M(B) PoE Switch Mall+254

HikVision 4 port DS-3E0105P-E/M(B) PoE Switch from the leading hikvision CCTV dealer in Nairobi Kenya, buy HikVision 4 port DS-3E0105P-E/M(B) PoE Switch and have it delivered.

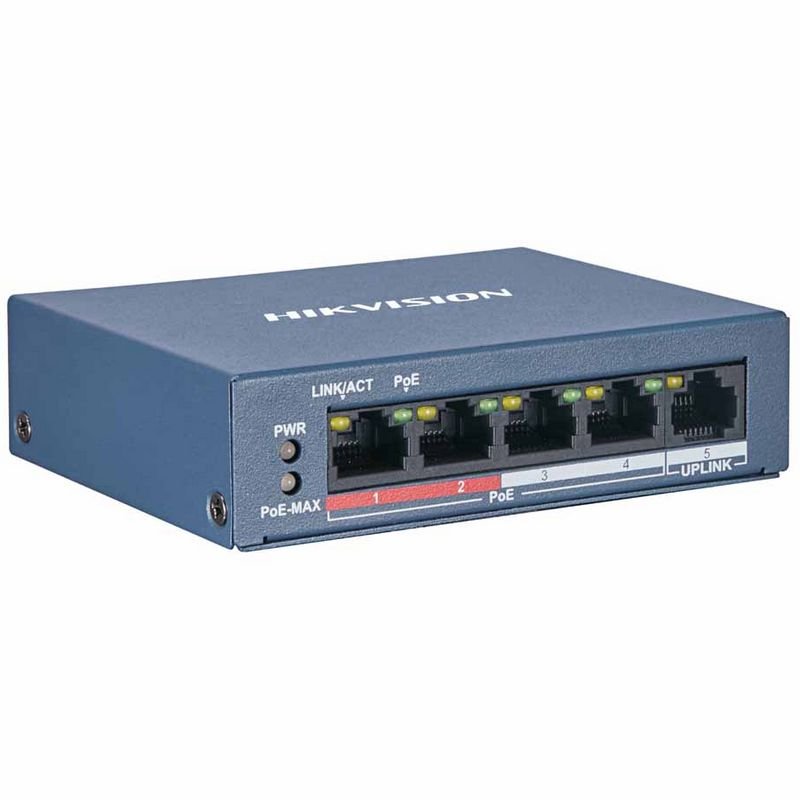

Hikvision DS-3E0105P-E is a 10/100 Mbps unmanaged switch that requires no configuration and provides four PoE (Power over Ethernet) ports.

HikVision 4 port DS-3E0105P-E/M(B) PoE Switch  can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices.

HikVision 4 port DS-3E0105P-E/M(B) PoE Switch electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc.

HikVision 4 port DS-3E0105P-E/M(B) PoE Switch specifications

Hikvision DS-3E0105P-E Technical Specification

Ports

• Ports: 5
• PoE Port: 4 x 10/100 Mbps, RJ-45 ports
• Uplink Port: 1 x 100M Ethernet Port

Standard

• Network Protocol IEEE802.3, 802.3u, 802.3x, 802.3af, 802.3at

Performance

• Switching Capacity: 1 Gbps
• Max. Forwarding Rate: 0.74 Mpps
• High Priority Ports: Port 1
• Forwarding Mode: Store-and-forward
• MAC Address Table: 1k
• Flow Control: IEEE 802.3x full duplex

Power over Ethernet

• PoE Standard: 4 ports IEEE802.3af (up to 15.4 W per port) or 2 ports IEEE802.3at (up to 30 W per port)
• PoE Power Budget: 58 W
• Working Mode: Extend On: 250 m, 10M, CAT 5e

General

• Power Supply: 51 VDC, 1.25 A
• Power Consumption: <63 W
• Surge Protection: 4 kV
• Working Temperature: 32° F to 104° F (0° C to 40° C)
• Working Humidity: 10% to 90% , non-condensing
• Storage Temperature: -40° F to 158° F (-40° C to 70° C)
• Storage Humidity: 5%-90% , non-condensing
• Weight: 10.55 ozs (299 g)
• Dimension: 5.2″ x 3.7″ x 1.09″ (132 mm x 93.3 mm x 27.6 mm)
