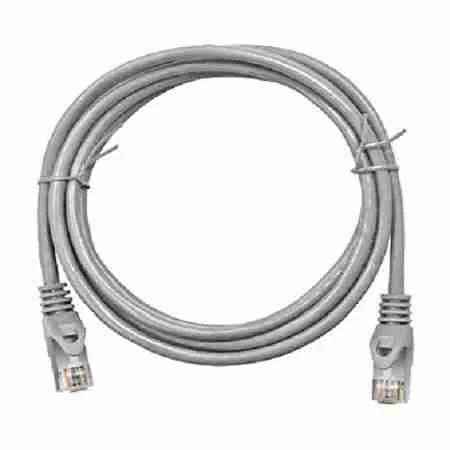

Giganet Cat6 1M UTP patch cord Mtech
Giganet Cat6 1M UTP patch cord are manufactured from stranded conductor cable and verified to Cat 6TIA/EIA-568-B.2-1 standards. Available for flexible and cost effective Cat 6 installations.
Giganet Category 6 patch cords when used with high performance Giganet Category 6 connectivity (solid UTP cable, patch panels and work area outlets) provide superior performance capabilities of high bandwidth applications support.
Giganet Category 6 UTP Patch Cable is the perfect performance upgrade. Used to replace any Cat 5 cable that fails to support 100 Base-T or Gigabit Ethernet.FEATURES:1. High quality Ethernet Network Cable with two RJ45 Connectors2. Up to 1000Mps / Gigabit Ethernet Speed3
Giganet Cat6 1M UTP patch cord specifications
| Cable Construction | |
|---|---|
| Conductor | |
| Material | Bare Copper |
| Wire Size | 24AWG |
| Insulation | |
| Material | HDPE |
| Thickness | 0.18 |
| Diameter | 0.97±0.05mm |
| Colors | Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown |
| Jacket | |
| Material | PVC, flame retardant CM grade |
| Thickness | Nom. 0.59 |
| Diameter | 5.5 ±0.2mm |
| Colors | Gray | Blue | Yellow | Red | Green | Orange | Black | Violet |
| Maximum Tensile Strength | 1.05 kgf/mm2 |
| RJ45 Plug | |
| Plug Type | Un-shielded RJ45 plug | Housing>polycarbonate |
| Contact Material | Copper alloy 50u” gold plated over nickel |
| Strength | 20lbs. min |
| Durability | 750 cycles min. |
| Wiring schemes | T568B (Standard) – T568A on request |
| Electrical | |
| Impedance | 93.8Ω ± 15 Ω at 20℃ |
| Capacitance unbalance pair to ground | max. 330pf/100m Max |
| D.C.R (Max.) | nom. 14.8 ohm/100m at 20℃ |
| DC Insulation Resistance | 500MΩ/100m min. |
| Resistance unbalance | 3% MAX./100m |
