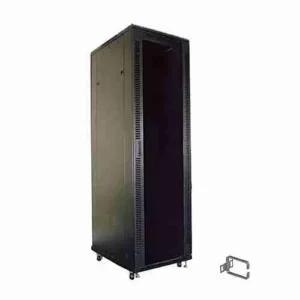

APS 42U Server Rack/ Data cabinet 600 x 600 Mall+254
APS 42U Server Rack/ Data cabinet 600 x 600 thickness rack profiles, 2mm. Shelf depth 487 mm (from front frame to the back cover of the cabinet). Distance between front and rear 375 mm (configurable by the user) frame. Compatible with ANSI/EIA RS-310-D, IEC60297-2, DIN41494 (PART1) and DIN41494 (part7) standards. Compatible 19 “International Standards, ETSI. Wardrobe made of SPCC 1.2mm thick steel, painted black (RAL 9004). Supplied unassembled in flat-pack for convenience of transport. Maximum static load supported: 1.200 Kg. Front door with metal frame, glass and key security.
Specifications
| U SPACES | 42U |
|---|---|
| EXTERNAL WIDTH | 600 mm |
| EXTERNAL DEPTH | 600 mm |
| PROFILE WIDTH | 19″ |
| LOCKS & HINGES | Front Door: Slam Latch; Side/Rear Doors: Cam Lock |
| MOUNTING PROFILES | Adjustable Front / Rear |
| DOOR TYPES | Front: 4mm Bronzed Toughned Glass; Optional Steel / Mesh – Rear: Vented Steel Door |
| SIDE PANELS | CR4 Steel – Lockable Doors |
| CABLE ENTRY | Floor; Optional: Top Cable Brush Entry |
| VENTILATION | Top Cover rear & sides lower / Fan Tray Optional |
| SUPPLIED BASE FITTINGS | Standard Castors; Optional Heavy Duty Castors |
| WARRANTY | 1 Year |
