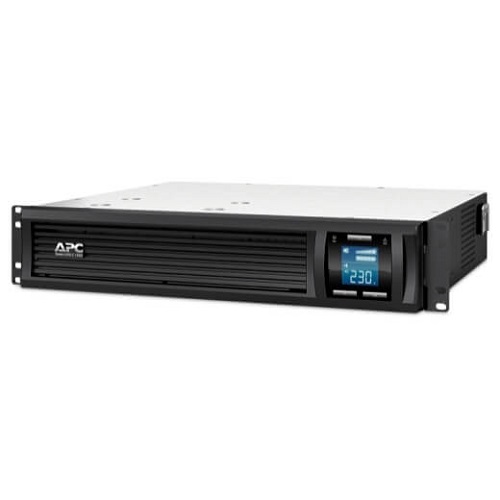

APC SRV3KRIRK, Rack mount LCD 230V Smart-UPS

APC Smart-UPS C 3000VA, Rack mount LCD 230V UPS

APC Smart-UPS C 3000VA Rackmount LCD 230V – APC Network grade power conditioning protects from damaging surges and disruptive noise.

3000VA Rackmount UPS Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

3000VA APC UPS is network manageable via serial, USB or optional Ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

3000VA APC smart UPS Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified.

APC smart 3000VA  UPS Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self-tests ensure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

APC smart 3000VA  UPS specification

• Model Name: APC Smart-UPS C 3000VA Rack Mount LCD 230V (SRV3KRIRK)
• Form Factor: Rack Mount
• Topology: Double Conversion Online
• User Replaceable Battery: Yes
• Runtime Scalable: Yes (with additional external battery packs)

Electrical Input:

• Input Voltage: 230V
• Input Frequency: 40-70 Hz (auto-sensing)
• Input Connection Type: Hardwired 3-wire (H N + Ground)
• Input Voltage Range: 110V – 300V

Electrical Output:

• Output Power Capacity: 2400 Watts / 3000 VA
• Output Voltage: 230V
• Output Frequency: 50/60 Hz ± 0.1 Hz (auto-sensing)
• Waveform Type: Sine wave
• Output Connections:
  • (8) IEC 320 C13
  • (1) IEC 320 C19

Battery:

• Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte
• Typical Recharge Time: 4 hours
• Battery Replacement: Hot-swappable internal battery
• Battery Backup Time (at Half Load): Approx. 13 minutes (1200W)
• Battery Backup Time (at Full Load): Approx. 4 minutes (2400W)
